Last Updated : July 5th 2021 (brought up-to-date)
A comprehensive list of parts which are needed for
the Bristol VR front axle group. Please contact
me if you need help with any of these parts.
Axle Beam - Stub Axle and
Steering Arm Group EA20
Brake Gear Group EB18/EJ13
Hub and Brake Drum Group EC13
Download
full diagram set as PDF
Axle Beam - Stub Axle and Steering Arm Group EA20
| Axle
Beam - Stub Axle and Steering Arm Group EA20 |
|||||
| Illustration |
Ref |
Part Number |
Description |
# per Chassis |
Buy |
 |

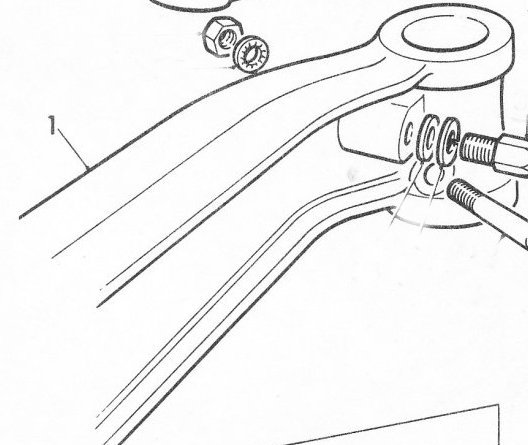

1 |
25VRE |
Beam axle |
1 |
|
 |

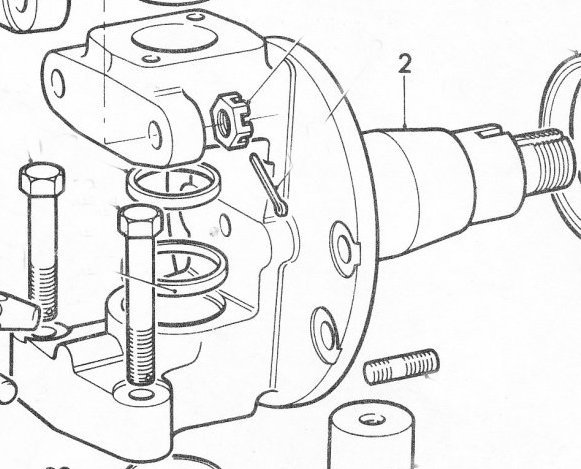

2 |
2VRE 3VRE |
Stub axle (offside) Stub axle (nearside) |
1 1 |
|
 |

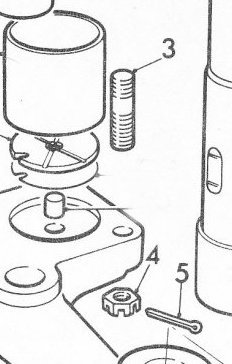

3 |
220VRE |
Stud for stub axle nearside and
track rod lever |
4 |
CF |
| 4 |
UCN408 |
Nut |
4 |
||
| 5 |
Split pin 3/32'' x 1.1/2'' overall |
4 |
|||
 |

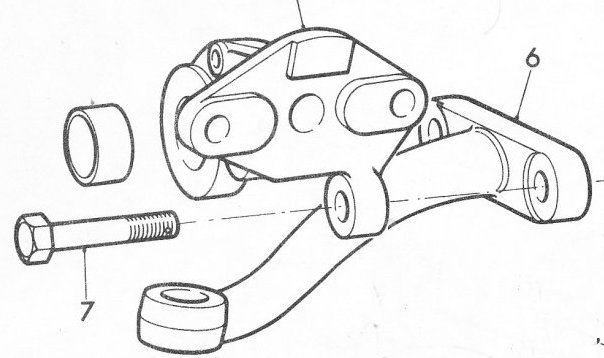

6 |
101VRE |
Top steering arm |
1 |
|
| 7 |
224VRE/1 |
Bolt for top steering arm |
4 |
CF |
|
 |
8 |
UFN412 |
Nut |
4 |
|
| 9 |
Split pin 5/32'' x 2''
overall |
4 |
|||
| 11 |
222VRE/1 |
Bolt for track rod lever |
2 |
CF |
|
| 12 |
223VRE/1 |
Bolt for track rod lever |
2 |
||
 |
10 |
9VRE 10VRE |
Track rod lever (offside) Track rod lever (nearside) |
1 1 |
CF |
| 13 |
UFN412 |
Nut |
4 |
||
| 14 |
Split pin 5/32'' x 2'' overall | 4 |
|||
 |
15 |
UCSD08/16R |
Anchor bracket stud |
8 |
|
| 16 |
229VRE |
Collar for stub axle |
2 |
CF |
|
 |

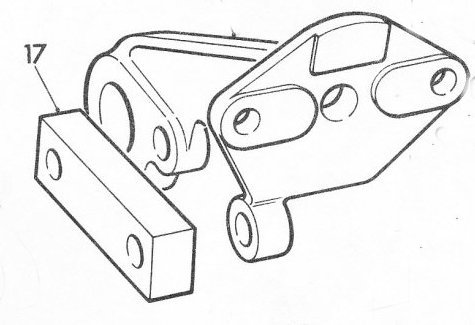

17 |
213VRE |
Brake chamber bracket spacer
(nearside) |
1 |
|
 |
18 |
200VRE |
Cover for stub axle - top plate |
2 |
CF |
| 19 |
UCS105/65 |
Setscrew |
4 |
||
| 20 |
1218 |
5/16'' shakeproof washer |
4 |
||
| 22 |
252VRE |
King pin top bush |
4 |
£19.95 each incl P&P |
|
 |

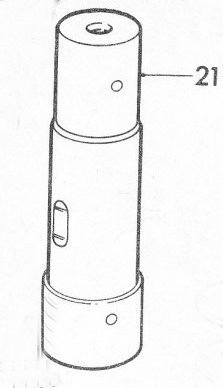

21 |
110VRE |
King pin |
2 |
£169.95 each incl P&P to UK International customers please email |
 |
23 |
251VRE |
King pin bottom bush |
2 |
£24.95 each incl P&P |
| 24 |
248VRE |
Thrust pad for king pin |
2 |
||
 |
25 |
247VRE |
Cotter pin |
2 |
|
| 26 |
FN108 |
Nut |
2 |
||
| 27 |
1224 |
Washer 1/2''
shakeproof |
2 |
||
| 28 |
231VRE |
King pin bearing top seal |
2 |
||
| 29 |
232VRE |
King pin bearing bottom seal |
2 |
||
 |
30 |
195VW |
Dowel for thrust pad |
2 |
|
| 31 |
11VRE |
Bracket for brake chamber
(nearside) |
1 |
||
| 31A |
250VRE |
Shim .010'' thick for stub axle |
as reqd |
CF |
|
 |

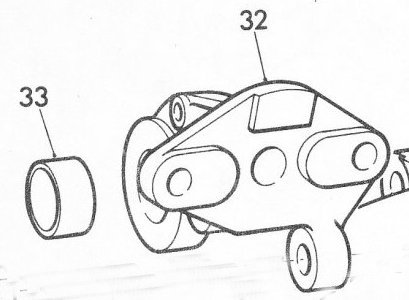

32 |
12VRE |
Bracket for brake chamber
(offside) |
1 |
CF |
| 33 |
4808WB-2416 |
Bush |
2 |
||
 |
34 |
242VRE |
Stop for stub axle beam |
2 |
|
| 35 |
Washer 7/16'' plain |
as reqd |
|||
| 36 |
1222 |
Washer 7/16'' shakeproof |
2 |
||
 |
37 |
Greaser BS1486 Part 1, Table 1,
Type 2B |
4 |
||
| 38 |
No. 3 |
Washer Dowty Salon |
4 |
||
| Axle Beam - Track Rod Group EF9 | |||||
 |
39 |
102VRE |
Track rod |
1 |
CF |
| 40 |
101MWE 102MWE |
Socket for track rod (nearside) Socket for track rod (offside) |
1 1 |
CF |
|
| 41 |
219HGE/1 |
Small seating for track rod socket |
2 |
||
| 42 |
220HGE |
Large seating for track rod socket |
2 |
||
| 43 |
221HGE |
Spring for track rod socket |
2 |
||
| 44 |
226HGE |
Cap for track rod socket |
2 |
CF |
|
| 45 |
Split pin 5/32 x 2 1/2'' long |
2 |
|||
| 46 |
223HGE |
Sealing disc for track rod socket |
2 |
||
| 47 |
DUF8108/185 |
Bolt |
4 |
||
| 48 |
UFN408 |
Nut |
4 |
||
| 49 |
Split pin 3/32'' x 1 1/4'' overall |
4 |
|||
| 50 |
203MWE |
Ball pin for track rod socket |
2 |
CF |
|
| 51 |
206MWE |
Felt washer for ball-pin |
2 |
||
| 52 |
297LSE |
Nut for ball-pin |
2 |
||
| 53 |
Split pin 1/8'' x 1 1/2'' long
overall |
2 |
|||
| 54 |
5/8'' plain washer |
2 |
|||
| 55 |
NB5962 |
Nipple 1/8'' BSP |
2 |
||
| Brake
Gear Group EB18/EJ13 |
|||||
| Illustration |
Ref |
Part Number |
Description |
# per Chassis |
Buy |
 |
60 |
137VRE 138VRE 140VRE 141VRE |
Brake shoe sub assembly (front
offside leading) Brake shoe sub assembly (front offside leading) Brake shoe sub assembly (front nearside leading) Brake shoe sub assembly (front nearside leading) |
1 1 1 1 |
|
| 61 |
16VRE |
Brake shoe (front leading) |
2 |
||
| 62 |
130VRE/F/AM14 130VRE/D/242 |
Brake shoe liner Brake shoe liner |
2 2 |
||
| 63 |
128VRE/F/AM14 128VRE/D/242 129VRE/F/AM14 129VRE/D/242 |
Brake shoe liner (leading
nearside) Brake shoe liner (leading nearside) Brake shoe liner (leading offside) Brake shoe liner (leading offside) |
1 1 1 1 |
||
| 64 |
16DU12 |
Bush |
4 |
||
| 65 |
L12 |
Brass rivet to BS3575 |
32 |
||
 |

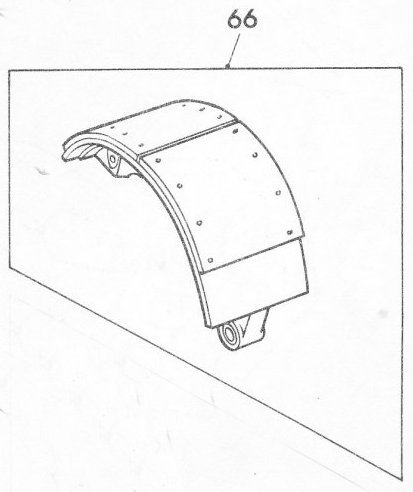

66 |
136VRE 139VRE |
Brake shoe sub assembly (front
trailing) Brake shoe sub assembly (front trailing) |
2 2 |
|
 |
67 |
14VRE |
Brake shoe (front trailing) |
2 |
|
| 68 |
130VRE/F/AM14 130VRE/D/242 |
Brake shoe liner Brake shoe liner |
2 2 |
||
| 69 |
131VRE/F/AM14 131VRE/D/242 |
Brake shoe liner (trailing) |
2 |
||
| 70 |
16DU12 |
Bush |
4 |
||
| 71 |
L12 |
Brass rivet to BS3575 |
32 |
||
| 72 |
202VRE |
Bracket for eccentric pin |
4 |
||
| 73 |
203VRE |
Bracket for eccentric pin | 4 |
||
| 74 |
201VRE/1 |
Eccentric pin |
4 |
||
| 75 |
205VRE |
Brake cam roller |
4 |
||
| 76 |
204VRE/1 |
Locknut for eccentric pin |
4 |
CF |
|
| 77 |
228VRE |
Bolt for eccentric pin bracket |
4 |
||
| 78 |
UCN407 |
Nut |
4 |
||
| 79 |
Split pin 3/32'' x 1 1/2'' overall |
4 |
|||
| 80 |
UCSD04/BR |
Stud |
8 |
||
| 81 |
UCN104 |
nut |
8 |
||
| 82 |
UFN210 |
Locknut |
4 |
||
 |

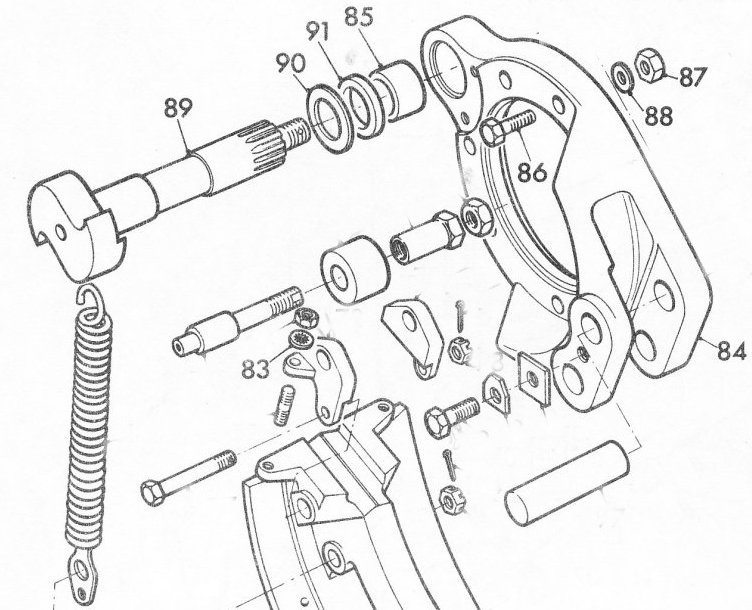

83 |
1214 |
Washer |
||
| 84 |
6VRE 8VRE |
Front brake anchor bracket
(nearside) Front brake anchor bracket (offside) |
1 1 |
CF |
|
| 85 |
4808WB-2416 | Bush |
2 |
||
| 86 |
243VRE/1 | Bolt for anchor bracket |
8 |
||
| 87 |
NP/N169 | Locknut |
16 |
||
| 88 |
Washer 1/2'' plain BS3410 Table 3
- light gauge |
16 |
|||
| 89 |
4VRE/2 5VRE/2 |
Brake cam (front offside) Brake cam (front nearside) |
1 1 |
||
| 90 |
209VRE |
Felt retaining washer |
2 |
||
| 91 |
208VRE |
Felt washer |
2 |
||
 |
92 |
227STM |
Felt washer |
2 |
|
| 93 |
UFN410 |
Nut |
2 |
||
| 94 |
Split pin 5/32'' long overall |
2 |
|||
| 95 |
Haldex 70510 |
Slack adjuster SAB automatic Type
AA1 Part No. 510 |
2 |
||
| 96 |
NB5962 |
Grease nipple 1/8'' Tecalemit |
2 |
||
 |
97 |
217VRE |
Anchor pin for brake shoe |
4 |
|
| 98 |
362LDM |
Locking plate for brake anchor
pins |
2 |
||
| 99 |
UCS106/5S |
Setscrew |
2 |
||
| 100 |
230VRE |
Washer tab |
2 |
CF |
|
| 101 |
105VRE/1 |
Front brake pull-off spring |
2 |
CF |
|
| 102 |
212VRE/1 |
Spring anchor pin |
4 |
CF |
|
| 103 |
UCN407 |
Nut |
4 |
||
| 104 |
Split pin 3/32'' x 1 1/2'' long
overall |
4 |
|||
| 105 |
UCS104/3S |
Setscrew |
4 |
||
| 106 |
1214 |
Washer 1/4'' shakeproof |
4 |
||
| 107 |
119VRE |
Grease guard |
2 |
||
 |
108 |
207VRE |
Grease tube for front brake cam |
2 |
|
| 109 |
210VRE |
Seal for front brake cam |
4 |
||
| 110 |
NB5962 | Grease nipple 1/8'' Tecalemit | 2 |
||
| 111 |
123VRE 124VRE |
Anchor bracket for slack adjuster
(offside) Anchor bracket for slack adjuster (nearside) |
1 1 |
CF |
|
| 112 |
233VRE |
Distance piece |
2 |
CF |
|
| 113 |
234VRE |
Distance piece |
2 |
||
| 114 |
237VRM |
Setscrew |
4 |
||
| 115 |
UCS104/10S |
Setscrew |
2 |
||
| 116 |
UCN104 |
Nut |
2 |
||
| 117 |
1214 |
Washer 1/4'' shakeproof |
2 |
||
| 118 |
240VRQ |
Pin for brake rod fork |
2 |
||
| 119 |
241VRQ |
Brake rod fork 5/16'' offset |
2 |
||
| 120 |
Washer 3/8'' medium bright to
BS3410 Table 5 |
2 |
|||
| 121 |
UCN406 |
Nut |
2 |
||
| 122 |
Split pin 1/16'' x 1'' long |
2 |
|||

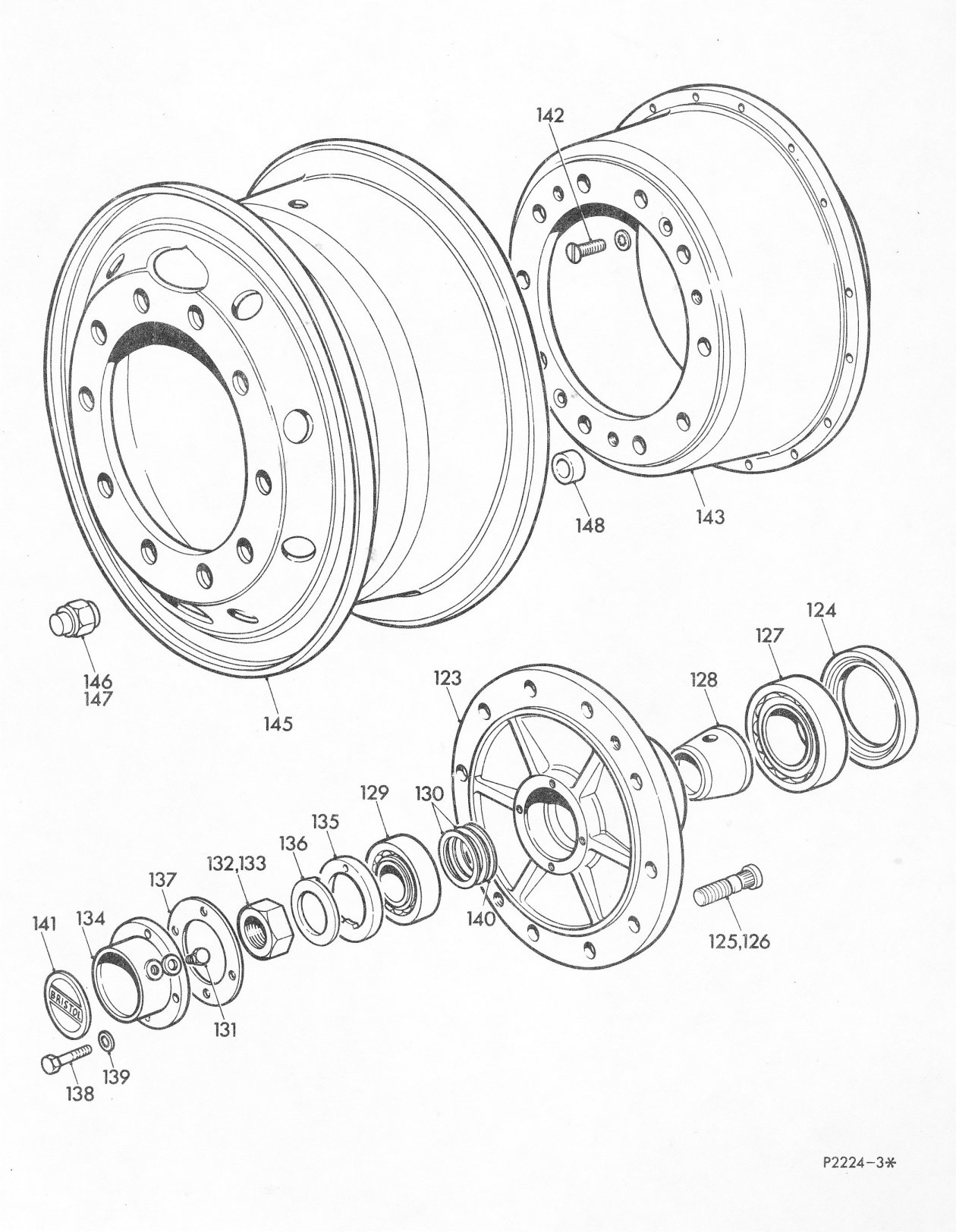

| Hub
and Brake Drum Group EC13 |
|||||
| Illustration |
Ref |
Part Number |
Description |
# per Chassis |
Buy |
 |
123 |
15VRE/1 |
Front hub |
2 |
CF |
| 124 |
W537/43743 |
Hub oil seal |
2 |
£14.95 incl P&P (per pair) Email to order |
|
| 125 |
244VRE |
Wheel disc stud (offside) |
10 |
CF |
|
| 126 |
245VRE |
Wheel disc stud (nearside) |
10 |
CF |
|
| 127 |
ABU5720 |
Inner front hub bearing. Timkin
H414210 - H414245X |
2 |
Click
to buy |
|
| 128 |
206VRE |
Distance piece for hub bearing |
2 |
||
 |
129 |
824482 |
Outer front hub bearing - Timkin
3720 - 3780 |
as reqd |
Click
to buy |
| 130 |
246VRE 296LDE 297LDE 298LDE |
Shim .015'' thick Shim .010'' thick Shim .020'' thick Shim .040'' thick |
as reqd | CF |
|
| 131 |
ROTH No. 1 |
Grease plug 1/8'' BSE |
as reqd | Included with hub cap (ref 134) |
|
| 132 |
253LSE |
Stub axle nut (offside) |
as reqd | ||
| 133 |
254LSE |
Stub axle nut (nearside) |
2 |
||
| 134 |
109LSE/3 |
Front hub cap |
2 |
£34.95 per cap (includes bolts & washers x 4) Email to order |
|
| 135 |
238VRE |
Washer circular |
2 |
||
| 136 |
241VRE |
Washer tab for stub axle unit |
2 |
||
| 137 |
257LSE |
Joint for hub cap |
2 |
||
| 138 |
UCB105/11S |
Bolt |
8 |
Included with hub cap (ref 134) | |
| 139 |
1218 |
Washer 5/16'' shakeproof |
8 |
Included with hub cap (ref 134) | |
| 140 |
246VRE |
Shim .015'' thick |
as reqd |
||
| 141 |
213REE |
Name plate |
2 |
BT |
|
 |
142 |
Setscrew 7/166' UNC x 7/8'' |
4 |
||
| 143 |
13VRE/1 |
Brake drum |
2 |
||
| 145 |
121VRE/1 122VRE/1 135VRE 134VRE 133VRE |
Wheel disc (6.75 x 22.5 x 5.5'') Wheel disc (7.5 x 22.6 x 6'') Wheel disc (7.5 x 20'') Wheel disc (7 x 20'') Wheel disc (7.5 x 22.5'') |
2 |
£150 each incl P&P to UK International customers please email |
|
| 146 |
56QE/2 |
Wheel disc nut (right hand/offside) |
10 |
||
| 147 |
57QE/2 |
Wheel disc nut (left hand/nearside) |
10 |
||
| 148 |
227REE |
Distance piece for wheel disc |
20 |
||
